12086
Part #: 12086
Model Number:
2VRELAN160-103C13TL6
Category:
Metered
Sub Category:
Standard
Power Configuration:
30A, 208V, 4.9kW
Physical Configuration:
2U 19in / 483mm, Horizontal
Product Summary:

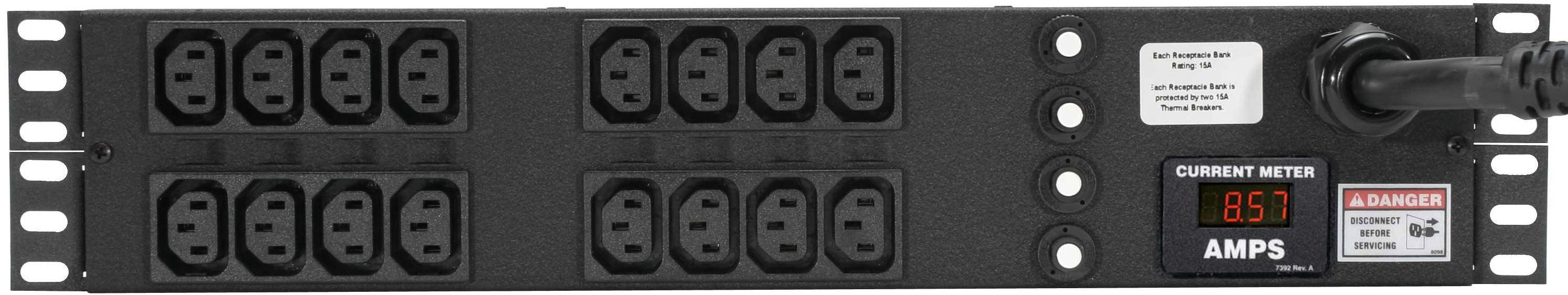

rPDU, Metered Standard, 30A, 208V, 4.9kW, Horizontal, (16) IEC C13, 10ft power cord with L6-30P, Black Powder Coat.
Monitoring:
Current - Local
Digital RMS Current Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input
Digital RMS Current Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input
Plug Form:
L6-30PReceptacle:
IEC C13 (Quantity: 16)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Monitoring | Current - Local Digital RMS Current Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input |
| Monitoring Level 1 | Aggregate - Total Unit Monitoring |
| Quantity Of Inputs | 1 |
| Voltage | 200-240V |
| Current | 30A |
| VA per Input (Load Capacity) | 4.9kW (208V) |
| Frequency | 50/60Hz |
| Over Current Protection | (4) 15A Thermal Breakers |
| Switch | No |
| Power Cable Wire Gauge | 10/3 |
| Power Cable Length | 10ft |
| Plug Type | NEMA L6-30P Twistlock |
| Receptacle/Socket Type #1 | IEC C13 |
| - Quantity on Face | 16 |
| - Quantity per Breaker Pair | 8 |
| - Style | Banks of 4 |
| - Maximum Output per Receptacle/Socket | 15A per receptacle bank |
| - Voltage per Receptacle/Socket | 208V |
| Continuous Operating Temperature Range | 10-45C / 50-113F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 19in / 483mm Horizontal Rackmount |
| Flush Mount | Yes |
| Country of Origin | USA, TAA Compliant and Buy American Act COTS Compliant |
| Product Warranty | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Certification/Agency Approvals | RoHS Compliant |
| Certification/Agency Approvals | UL & c-UL Listed Accessory 1950 |
| Chassis Dimensions (HxWxD) | 3.45in x 17in x 1.61in |
| Shipped Weight | 8lbs (3.63kg) |
