13212
Part #: 13212
Model Number:
2JRAN062-102L20TL5
Category:
Metered
Sub Category:
Standard
Power Configuration:
20A, 120V, 1.9kW
Physical Configuration:
2U 19in / 483mm, Horizontal
Product Summary:

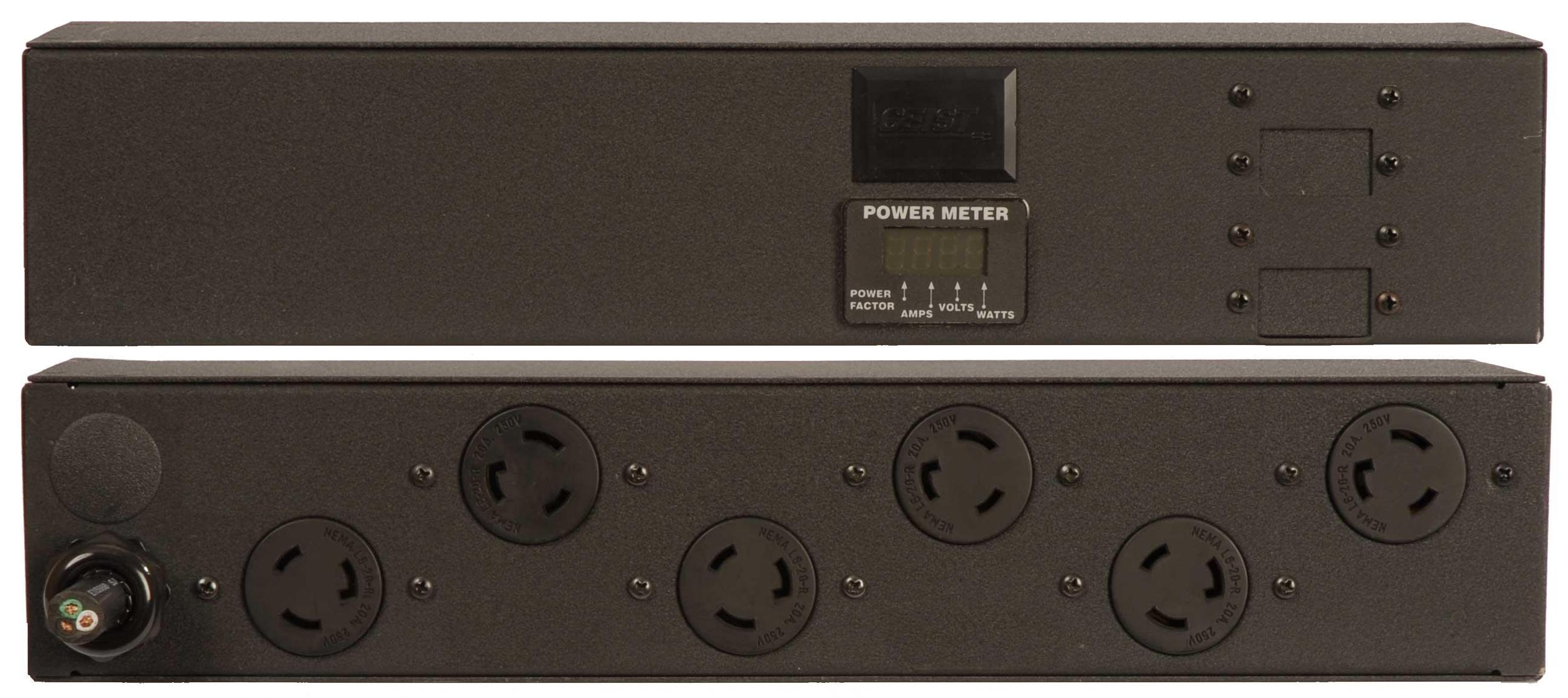

rPDU, Metered Standard, 20A, 120V, 1.9kW, Horizontal, (6) NEMA L5-20R, 10ft power cord with L5-20P, Black Powder Coat.
Monitoring:
Current - Local
Digital RMS Current Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input
Digital RMS Current Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input
Plug Form:
L5-20PReceptacle:
NEMA L5-20R (Quantity: 6)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Monitoring | Current - Local Digital RMS Current Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input |
| Monitoring Level 1 | Aggregate - Total Unit Monitoring |
| Quantity Of Inputs | 1 |
| Voltage | 100-120V |
| Current | 20A |
| VA per Input (Load Capacity) | 1.9kW (120V) |
| Frequency | 50/60Hz |
| Over Current Protection | None |
| Switch | No |
| Power Cable Wire Gauge | 12/3 |
| Power Cable Length | 10ft |
| Plug Type | NEMA L5-20P Twistlock |
| Receptacle/Socket Type #1 | NEMA L5-20R |
| - Quantity on Rear | 6 |
| - Style | Individual |
| - Maximum Output per Receptacle/Socket | 20A |
| - Voltage per Receptacle/Socket | 120V |
| Continuous Operating Temperature Range | 10-45C / 50-113F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 19in / 483mm Horizontal Rackmount |
| 19in Recess Mount | Yes |
| Country of Origin | USA, TAA Compliant and Buy American Act COTS Compliant |
| Product Warranty | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Certification/Agency Approvals | RoHS Compliant |
| Certification/Agency Approvals | UL & c-UL Listed 60950 |
| Chassis Dimensions (HxWxD) | 3.39in x 17in x 6in |
| Shipped Weight | 14lbs (6.35kg) |
