17173
Part #: 17173
Model Number:
VHVBAN202-102D20TL6
Category:
Metered
Sub Category:
Standard
Power Configuration:
20A, 208V, 3.3kW
Physical Configuration:
66in / 1683mm, Vertical
Product Summary:

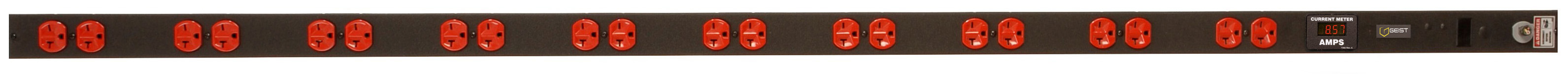

rPDU, Metered Standard, 20A, 208V, 3.3kW, Vertical, (20) NEMA 6-20R, 10ft power cord with L6-20P, Black Powder Coat.
Monitoring:
Current - Local
Digital RMS Current Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input
Digital RMS Current Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input
Plug Form:
L6-20PReceptacle:
NEMA 6-20R (Quantity: 20)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Monitoring | Current - Local Digital RMS Current Meter +/- 2% Accuracy with Full Scale 60Hz sine wave input |
| Monitoring Level 1 | Aggregate - Total Unit Monitoring |
| Quantity Of Inputs | 1 |
| Voltage | 200-240V |
| Current | 20A |
| VA per Input (Load Capacity) | 3.3kW (208V) |
| Frequency | 50/60Hz |
| Over Current Protection | None |
| Switch | No |
| Power Cable Wire Gauge | 12/3 |
| Power Cable Length | 10ft |
| Plug Type | NEMA L6-20P Twistlock |
| Receptacle/Socket Type #1 | NEMA 6-20R |
| - Quantity on Face | 20 |
| - Style | Duplex |
| - Maximum Output per Receptacle/Socket | 20A |
| - Voltage per Receptacle/Socket | 208V |
| Continuous Operating Temperature Range | 10-45C / 50-113F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 66in / 1683mm Vertical Rackmount |
| 7938 Vertical Mounting Bracket Kit | Yes |
| Toolless Mounting Hardware - Center to Center Spacing | 61.25in and 64.75in |
| Country of Origin | USA, TAA Compliant and Buy American Act COTS Compliant |
| Product Warranty | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Certification/Agency Approvals | RoHS Compliant |
| Certification/Agency Approvals | UL & c-UL Listed 60950 |
| Chassis Dimensions (LxWxD) | 66.25in x 1.85in x 1.30in |
| Shipped Weight | 12lbs (5.44kg) |
