Vertiv™ Geist™ rPDU


G2194

PDF icon Specification Sheet
PDF icon Manual

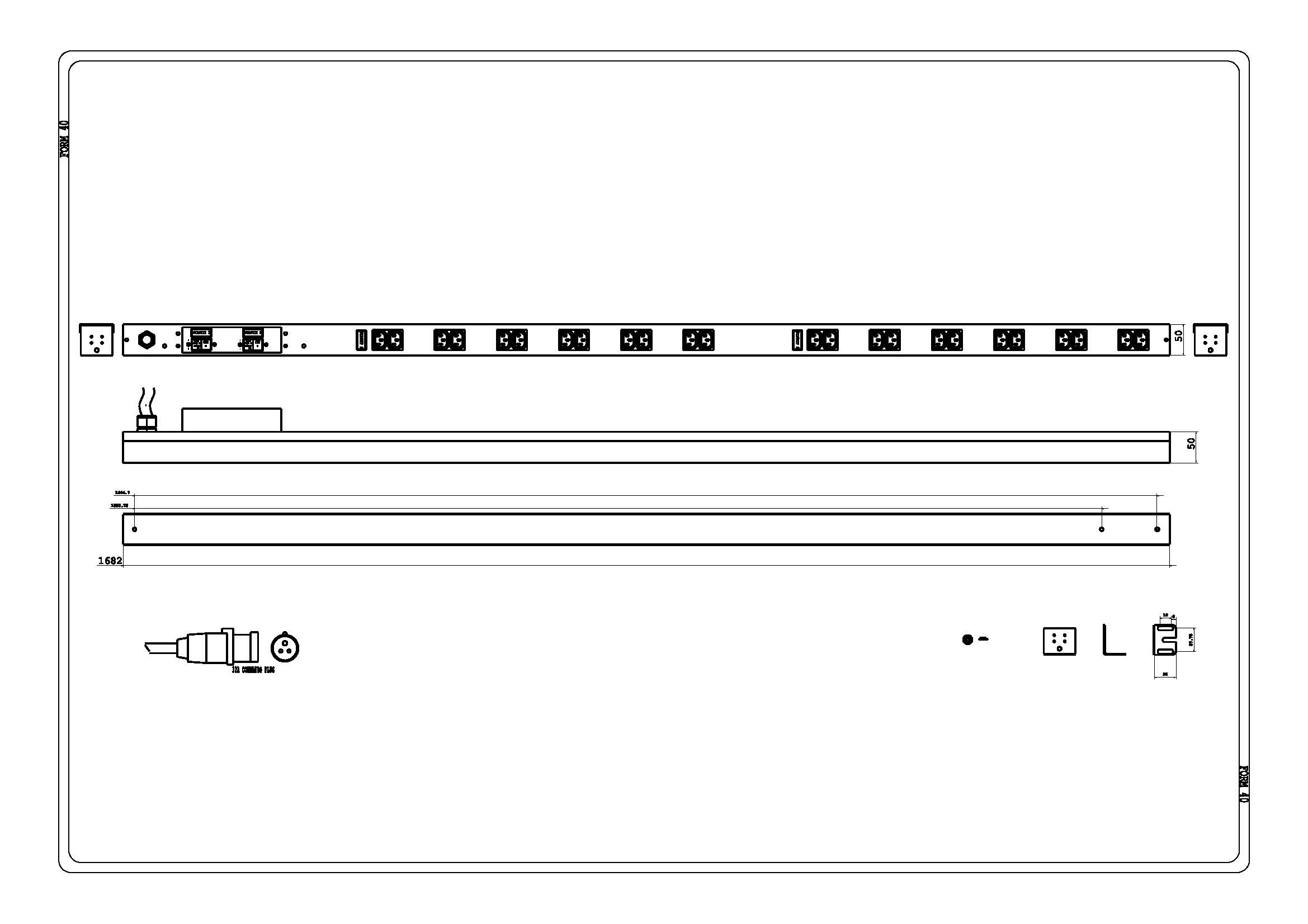

Image icon Submittal Drawing
Part #: G2194
Model Number:
MG00XEB1-24C133-3PS6B2A10-S
Category:
Basic
Sub Category:
Standard
Power Configuration:
32A, 230V, 7.3kW
Physical Configuration:
66in / 1683mm, Vertical
Product Summary:
rPDU, Basic Standard, 32A, 230V, 7.3kW, Vertical, (24) IEC C13, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
Plug Form:
1P+N+E (IP44)1P+N+E (IP44)
Receptacle:
IEC C13IEC C13 (Quantity: 24)
Chassis Color Options:
To discuss color options, contact your local sales representative.

Product Specification and Options

System Features
Quantity Of Inputs1
Voltage200-240V
Current32A
VA per Input (Load Capacity)7.3kW (230V)
Frequency50/60Hz
Over Current ProtectionNone
Over Current Protection(2) 16A Single Pole Magnetic Breakers
SwitchBreaker/Switch Combination
Power Cable Wire Gauge4mm² H07RN-F
Power Cable Length3m
Plug TypeIEC60309 1P + N + E, 32A, 250V, Splashproof IP44
Receptacle/Socket Type #1IEC C13
- Quantity on Face24
- Quantity per Breaker12
- StyleBanks of 2
- Maximum Output per Receptacle/Socket10A per receptacle bank
- Voltage per Receptacle/Socket230V
Maximum Operating Temperature60C / 140F
Heavy Steel - Powder Coat FinishBlack
Configuration66in / 1683mm Vertical Rackmount
GE Vertical Mounting BracketYes
Toolless Mounting Hardware - Center to Center Spacing1556mm and 1645mm
Product Warranty5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Certification/Agency ApprovalsCE Marked
Certification/Agency ApprovalsUKCA Marked
Certification/Agency ApprovalsComplies with IEC 62368-1 (DOC Available)
Certification/Agency ApprovalsComplies with EN 55032 and EN 55035
Certification/Agency ApprovalsRoHS Compliant
Certification/Agency ApprovalsCم Mark
Certification/Agency ApprovalsRCM Mark (EMC Only)
Chassis Dimensions (LxWxD)1683mm x 50mm x 50mm
Doghouse (D)37mm
Shipped Weight14lbs (6.35kg)
