I10036
Part #: I10036
Model Number:
MN01X4W1-38MP19-3TL21A0A10-S
Category:
Basic
Sub Category:
Upgradeable
Power Configuration:
30A, 120/208V WYE, 8.6kW
Physical Configuration:
72in / 1829mm, Vertical
Product Summary:

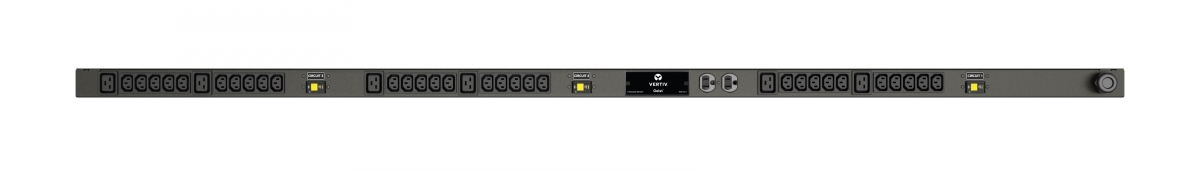

rPDU, Basic Upgradeable, 30A, 120/208V WYE, 8.6kW, Vertical, (30) IEC C13, (6) IEC C19, (2) NEMA 5-20R, 10ft power cord with L21-30P, Black Powder Coat.
Monitoring:
No Monitoring (Upgradeable with IMD module)
Plug Form:
L21-30PReceptacle:
IEC C13 (Quantity: 30)
IEC C19 (Quantity: 6)
NEMA 5-20R (Quantity: 2)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Monitoring | No Monitoring (Upgradeable with IMD module) |
| Quantity Of Inputs | 1 |
| Voltage | 100-120/200-240V WYE |
| Current | 30A x 3 Phase WYE |
| VA per Input (Load Capacity) | 8.6kW (208V) |
| Frequency | 50/60Hz |
| Over Current Protection | (3) 20A Double Pole Magnetic Breakers |
| Switch | Breaker/Switch Combination |
| Power Cable Wire Gauge | 10/5 |
| Power Cable Length | 10ft / 3m |
| Power Entry Location | Bottom Front |
| Plug Type | NEMA L21-30P Twistlock |
| Combined Total Receptacle/Socket Quantity | 38 |
| Receptacle/Socket Type #1 | IEC C13 |
| - Quantity on Face | 30 |
| - Quantity per Breaker and Phase Combination | 10 |
| - Style | Banks of 5 |
| - Voltage per Receptacle/Socket | 208V |
| Receptacle/Socket Type #2 | IEC C19 |
| - Quantity on Face | 6 |
| - Quantity per Breaker and Phase Combination | 2 |
| - Style | Individual |
| - Voltage per Receptacle/Socket | 208V |
| Receptacle/Socket Type #3 | NEMA 5-20R |
| - Quantity on Face | 2 |
| - Quantity A Phase Only | 2 |
| - Style | Duplex |
| - Voltage per Receptacle/Socket | 120V |
| Maximum Operating Temperature | 60C / 140F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 72in / 1829mm Vertical Rackmount |
| 7938 Vertical Mounting Bracket Kit | Yes |
| Toolless Mounting Hardware - Center to Center Spacing | 61.25in and 64.75in |
| Country of Origin | USA, TAA Compliant and Buy American Act COTS Compliant |
| Product Warranty | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Certification/Agency Approvals | RoHS Compliant |
| Certification/Agency Approvals | FCC Part 15 Class A Conformance |
| Certification/Agency Approvals | UL & c-UL Listed 62368-1 |
| Chassis Dimensions (LxWxD) | 72in x 2in x 2in |
| Shipped Weight | 17lbs (7.71kg) |
