UI10027
Part #: UI10027
Model Number:
DU01X2R1-24CF17-2S02A9H00-S
Category:
Basic
Sub Category:
Upgradeable
Power Configuration:
Variable, Variable, 22.0kW
Physical Configuration:
19in / 483mm, Horizontal
Product Summary:

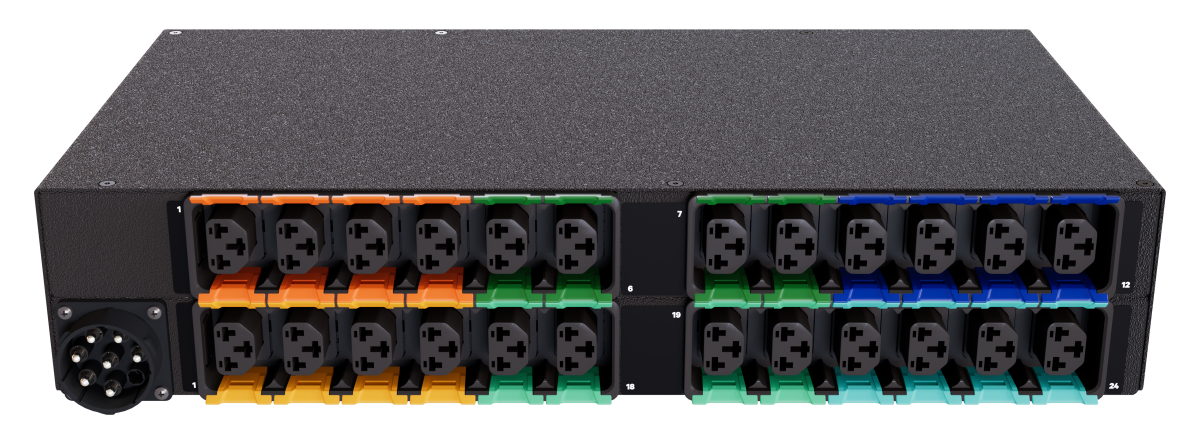

rPDU, Basic Upgradeable, 22.0kW, Variable Power Configuration, Horizontal, (24) Combination C13/C19, Universal Inlet, Black Powder Coat.
Monitoring:
No Monitoring (Upgradeable with IMD module)
Plug Form:
Universal InletReceptacle:
Combination C13/C19 (Quantity: 24)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Monitoring | No Monitoring (Upgradeable with IMD module) |
| Quantity Of Inputs | 1 |
| Maximum Input Power (Defined by Facility Side Cable) | 63A Single Phase, 240V Max, 14.4kW 48A 3 Phase DELTA, 240V Max, 19.9kW 32A Three Phase WYE, 240/415V Max, 22.0kW |
| Frequency | 50/60Hz |
| Over Current Protection | (6) 16A Double Pole Magnetic Breakers (10kAIC Rated) |
| Switch | Breaker/Switch Combination |
| Power Entry Location | Left Rear |
| Plug Type | Universal Inlet |
| Receptacle/Socket Type #1 | Combination C13/C19 |
| - Quantity on Rear | 24 |
| - Quantity per Breaker | 4 |
| - Circuit Color ID | 6 Circuit = Orange, Light Orange, Green, Light Green, Blue, Light Blue |
| - Style | Banks of 6 |
| - Voltage per Receptacle/Socket | Defined by Facility Side Cable |
| Maximum Operating Temperature | 60C / 140F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 2U |
| 19in Recess Mount | Yes |
| Product Warranty | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Certification/Agency Approvals | CE Marked |
| Certification/Agency Approvals | UKCA Marked |
| Certification/Agency Approvals | RoHS Compliant |
| Certification/Agency Approvals | UL & c-UL Listed 62368-1 |
| Chassis Dimensions (HxWxD) | 3.39in x 17in x 9in / 87mm x 432mm x 229mm |
| Shipped Weight | 16lbs (7.26kg) |
