VP0N3100
Part #: VP0N3100
Model Number:
MN00X1R1-16MCQ9-3TL14A0A10-S
Category:
Basic
Sub Category:
Standard
Power Configuration:
30A, 120/208V, 5.7kW
Physical Configuration:
19in / 483mm, Horizontal
Product Summary:
rPDU, Basic, Standard, 30A, 120/208V, 5.7kW, Horizontal, (12) Combination C13/C19, (4) NEMA 5-20R, 10ft power cord with L14-30P, Black Powder Coat.
Plug Form:
L14-30PReceptacle:
Combination C13/C19 (Quantity: 12)
NEMA 5-20R (Quantity: 4)Chassis Color Options:
To discuss color options, contact your local sales representative.
Product Specification and Options
System Features
| Quantity Of Inputs | 1 |
| Voltage | 100-120/200-240V |
| Current | 30A |
| VA per Input (Load Capacity) | 5.7kW (208V) |
| Frequency | 50/60Hz |
| Over Current Protection | (2) 20A Double Pole Magnetic Breakers (10kAIC Rated) |
| Switch | Breaker/Switch Combination |
| Power Cable Wire Gauge | 10/4 |
| Power Cable Length | 10ft / 3m |
| Power Entry Location | Left Rear |
| Plug Type | NEMA L14-30P Twistlock |
| Combined Total Receptacle/Socket Quantity | 16 |

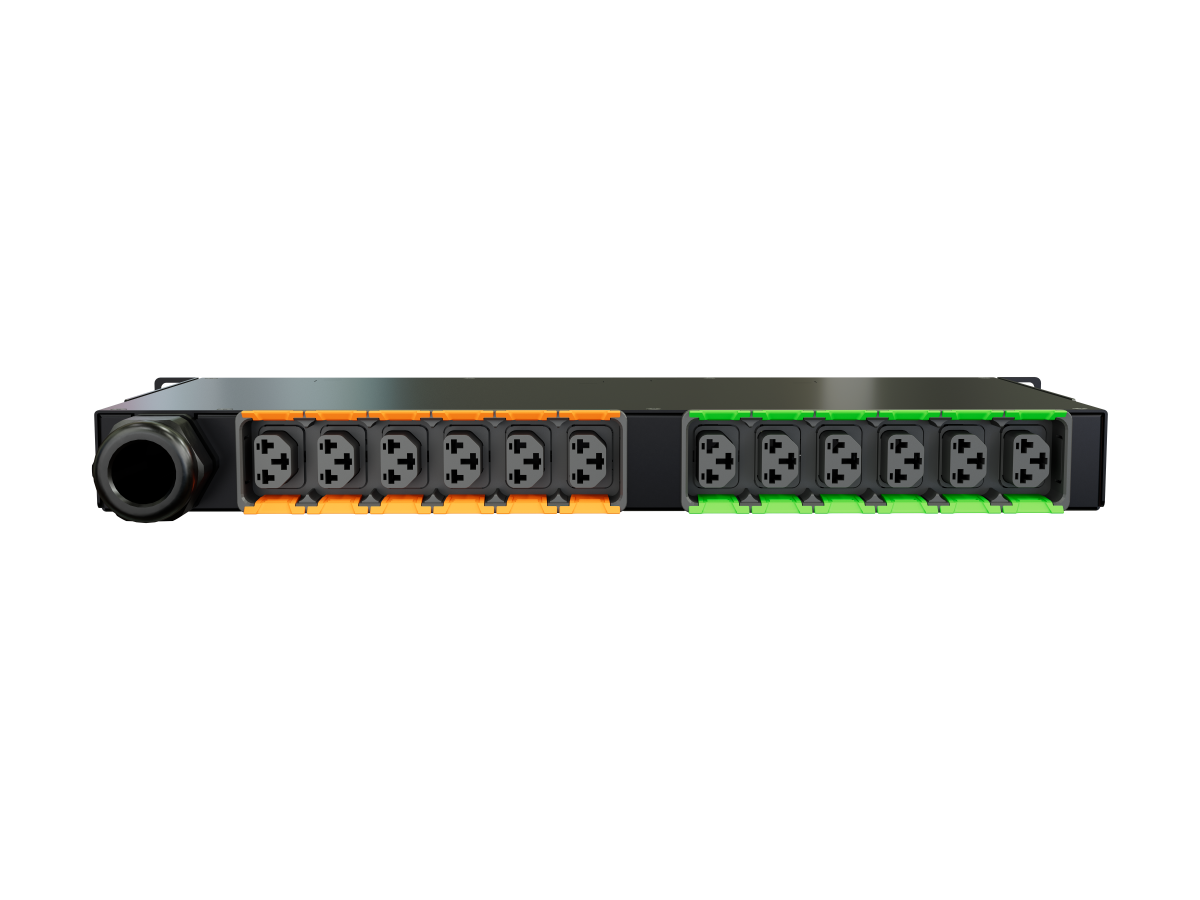

| Receptacle/Socket Type #1 | Combination C13/C19 |
| - Quantity on Rear | 12 |
| - Quantity per Breaker | 6 |
| - Style | Banks of 6 |
| - Voltage per Receptacle/Socket | 208V |
| Receptacle/Socket Type #2 | NEMA 5-20R |
| - Quantity on Rear | 4 |
| - Quantity per Breaker | 2 |
| - Style | Individual |
| - Voltage per Receptacle/Socket | 120V |
| Maximum Operating Temperature | 60C / 140F |
| Heavy Steel - Powder Coat Finish | Black |
| Configuration | 1U |
| Adjustable Mount Brackets | Yes |
| Country of Origin | USA, TAA Compliant and Buy American Act COTS Compliant |
| Product Warranty | 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years |
| Certification/Agency Approvals | UL & c-UL Listed 62368-1 |
| Certification/Agency Approvals | RoHS Compliant |
| Chassis Dimensions (HxWxD) | 1.72in x 17in x 8.5in / 44mm x 432mm x 216mm |
| Shipped Weight | 15lbs (6.8kg) |
