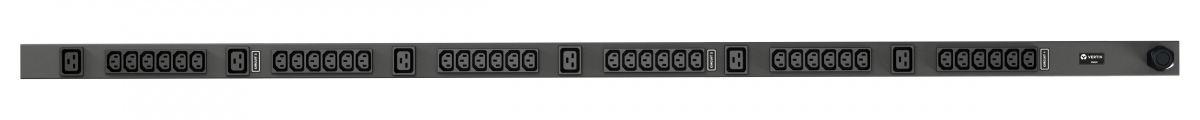

Vertiv™ Geist™ rPDU


VP7557

PDF icon Specification Sheet
PDF icon Manual
Part #: VP7557
Model Number:
MG00X4B0-42IZ63-2PS56B2A10-S
Category:
Basic
Sub Category:
Standard
Power Configuration:
16A, 230/400V WYE, 11.0kW
Physical Configuration:
66in / 1683mm, Vertical
Product Summary:
rPDU, Basic Standard, 16A, 230/400V WYE, 11.0kW, Vertical, (36) IEC C13, (6) IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
Plug Form:
3P+N+E (IP44)3P+N+E (IP44)
Receptacle:
IEC C13IEC C13 (Quantity: 36)
IEC C19IEC C19 (Quantity: 6)
Chassis Color Options:
To discuss color options, contact your local sales representative.

Product Specification and Options

System Features
Quantity Of Inputs1
Voltage200-240/346-415V WYE
Current16A x 3 Phase WYE
VA per Input (Load Capacity)11.0kW (230V)
Frequency50/60Hz
Over Current ProtectionNone
SwitchNo
Power Cable Wire Gauge2.5mm² H07RN-F
Power Cable Length3m
Power Entry LocationBottom Front
Plug TypeIEC60309 3P + N + E, 16A, 230/400V, Splashproof IP44
Combined Total Receptacle/Socket Quantity42
Receptacle/Socket Type #1IEC C13
- Quantity on Face36
- Quantity per Phase12
- StyleBanks of 6
- Voltage per Receptacle/Socket230V
Receptacle/Socket Type #2IEC C19
- Quantity on Face6
- Quantity per Phase2
- StyleIndividual
- Voltage per Receptacle/Socket230V
Maximum Operating Temperature60C / 140F
Heavy Steel - Powder Coat FinishBlack
Configuration66in / 1683mm Vertical Rackmount
7938 Vertical Mounting Bracket KitYes
Toolless Mounting Hardware - Center to Center Spacing1556mm and 1645mm
Product Warranty5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
Certification/Agency ApprovalsCE Marked
Certification/Agency ApprovalsUKCA Marked
Certification/Agency ApprovalsComplies with IEC 62368-1 (DOC Available)
Certification/Agency ApprovalsComplies with EN 55032 and EN 55035
Certification/Agency ApprovalsRoHS Compliant
Certification/Agency ApprovalsCم Mark
Chassis Dimensions (LxWxD)1683mm x 51mm x 51mm
Shipped Weight17lbs (7.71kg)
