| Part # | Model # | Type | Sub Category | Amps | Volts | Rackmount Length | Cord Length | Plug Type | Receptacle (QTY) | Local Meter | Universal | Upgradeable | RCM-B | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VP9571A | XPR120-103C13TL6 |
Show Description
rPDU, Basic Standard, 30A, 208V, 4.9kW, Horizontal, (12) IEC C13, 10ft power cord with L6-30P, Black Powder Coat.
|
Basic | Standard | 30A | 208V | 19in / 483mm | 10ft | NEMA Twist Lock |
|
N | N | N | N | |
| VP9567 | NSVKN140-101R15 |
Show Description
rPDU, Basic Standard, 15A, 120V, 1.4kW, Vertical, (14) NEMA 5-15R, 10ft power cord with 5-15P, Black Powder Coat.
|
Basic | Standard | 15A | 120V | 24in / 610mm | 10ft | NEMA Straight Blade |
|
N | N | N | N | |

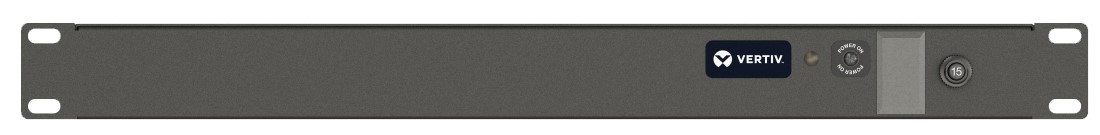

| VP9563 | BRN100-1025 |
Show Description
rPDU, Basic Standard, 20A, 120V, 1.9kW, Horizontal, (10) NEMA 5-20R, 10ft power cord with 5-20P, Black Powder Coat.
|
Basic | Standard | 20A | 120V | 19in / 483mm | 10ft | NEMA Straight Blade |
|
N | N | N | N | |

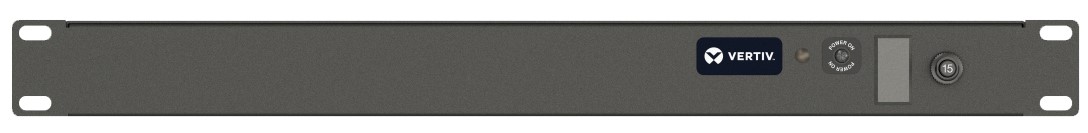

| VP9562 | BRN100-10 |
Show Description
rPDU, Basic Standard, 15A, 120V, 1.4kW, Horizontal, (10) NEMA 5-15R, 10ft power cord with 5-15P, Black Powder Coat.
|
Basic | Standard | 15A | 120V | 19in / 483mm | 10ft | NEMA Straight Blade |
|
N | N | N | N | |

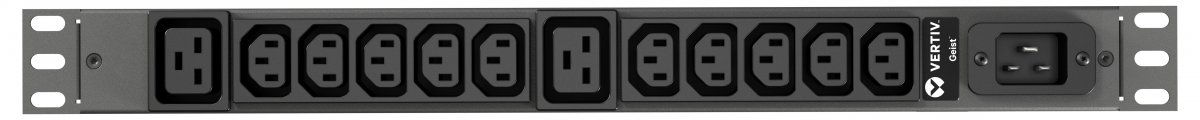

| VP9559 | MG00XER0-12I023-2C20A9A00-S |
Show Description
rPDU, Basic Standard, 16A, 230V, 3.6kW, Horizontal/Vertical, (10) IEC C13, (2) IEC C19, C20, Black Powder Coat.
|
Basic | Standard | 16A | 230V | 17in / 432mm | None | IEC |
|
N | N | N | N | |
| VP7UV0A3 | DUU5MGB1-24CF17-2S02A9K00-S-A |
Show Description
rPDU, Switched Outlet Level Monitoring EC, 22.0kW, Variable Power Configuration, Vertical, (24) Combination C13/C19, Universal Inlet, Black Powder Coat.
|
Switched | Outlet Level Monitoring | Variable | Variable | 66in / 1683mm | None | Universal Input |
|
Y | Y | Y | N | |
| VP7UV0A2 | DUU5M5W1-48CF17-2S02A9K00-S-A |
Show Description
rPDU, Switched Outlet Level Monitoring EC, 22.0kW, Variable Power Configuration, Vertical, (48) Combination C13/C19, Universal Inlet, Black Powder Coat.
|
Switched | Outlet Level Monitoring | Variable | Variable | 75in / 1905mm | None | Universal Input |
|
Y | Y | Y | N | |
| VP7UV0A1 | DUU5M4B1-24CF17-2S02A9K00-S-A-RC |
Show Description
rPDU, Switched Outlet Level Monitoring EC, Residual Current Metering Type B, 22.0kW, Variable Power Configuration, Vertical, (24) Combination C13/C19, Universal Inlet, Black Powder Coat.
|
Switched | Outlet Level Monitoring | Variable | Variable | 66in / 1683mm | None | Universal Input |
|
Y | Y | Y | Y | |
| VP7UV0A0 | DUU5MGW1-30PHB7-2S02A9K00-S-A |
Show Description
rPDU, Switched Outlet Level Monitoring EC, 22.0kW, Variable Power Configuration, Vertical, (18) Locking IEC C13, (12) Locking IEC C19, Universal Inlet, Black Powder Coat.
|
Switched | Outlet Level Monitoring | Variable | Variable | 72in / 1829mm | None | Universal Input |
|
Y | Y | Y | N | |
| VP7UU1A0 | DUU5M1R6-12CF17-1S02A9H00-S |
Show Description
rPDU, Switched Outlet Level Monitoring EC, Max 11.0kW, Variable Power Configuration, Horizontal, (12) Combination C13/C19, Universal Input, Black Powder Coat.
|
Switched | Outlet Level Monitoring | Variable | 19in / 483mm | None | Universal Input |
|
Y | Y | Y | N | ||
| VP7UU0A2 | DUU5MGW1-24CF17-1S02A9K00-S-A |
Show Description
rPDU, Switched Outlet Level Monitoring EC, 11.0kW, Variable Power Configuration, Vertical, (24) Combination C13/C19, Universal Inlet, Black Powder Coat.
|
Switched | Outlet Level Monitoring | Variable | Variable | 72in / 1829mm | None | Universal Input |
|
Y | Y | Y | N | |
| VP7UU0A1 | DUU5MGW1-24CF17-1S02A9K00-S-A-RC |
Show Description
rPDU, Switched Outlet Level Monitoring EC, Residual Current Metering Type B, 11.0kW, Variable Power Configuration, Vertical, (24) Combination C13/C19, Universal Inlet, Black Powder Coat.
|
Switched | Outlet Level Monitoring | Variable | Variable | 72in / 1829mm | None | Universal Input |
|
Y | Y | Y | Y | |
| VP7UU0A0 | DUU5M4W1-36PT67-1S02A9K00-S-A |
Show Description
rPDU, Switched Outlet Level Monitoring EC, 11.0kW, Variable Power Configuration, Vertical, (30) Locking IEC C13, (6) Locking IEC C19, Universal Inlet, Black Powder Coat.
|
Switched | Outlet Level Monitoring | Variable | Variable | 72in / 1829mm | None | Universal Input |
|
Y | Y | Y | N | |
| VP7UA0A0 | JMUU5MIZ1-36CF13-8HW56A9BXX-S |
Show Description
rPDU, Switched Outlet Level Monitoring, 80A, 200-240/346-415V WYE, 57.6kW, Vertical, (36) Combination C13/C19, Hardwired, Black Powder Coat.
|
Switched | Outlet Level Monitoring | 80A | 240/415V WYE | 66in / 1683mm | 10ft / 3m | Hardwired |
|
Y | N | Y | N | |
| VP7UA002 | MUU3EHB1-36CF13-8HW56A9BXX-S |
Show Description
rPDU, Switched Outlet Level Monitoring, 80A, 200-240/346-415V WYE, 57.6kW, Vertical, (36) Combination C13/C19, Hardwired, Black Powder Coat.
|
Switched | Outlet Level Monitoring | 80A | 200-240/346-415V WYE | 66in / 1683mm | 10ft / 3m | Hardwired |
|
Y | N | Y | N | |
| VP7U62A2 | JMUU5MZA6-24CF13-6PS56B4H10-S-A |
Show Description
rPDU, Switched Outlet Level Monitoring, 60/63A, 200-240/346-415V WYE, 43.4kW, Horizontal, (24) Combination C13/C19, 10ft / 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Switched | Outlet Level Monitoring | 60/63A | 240/415V WYE | 17in / 432mm | 10ft / 3m | IEC Splashproof |
|
Y | N | Y | N | |
| VP7U62A0 | MUU5MDR6-24CF17-6PS6H4A10-S |
Show Description
rPDU, Switched Outlet Level Monitoring, 60A/63A, 200-240V, 14.4kW, Horizontal, (24) Combination C13/C19, 10ft / 3m power cord with 1P+N+E (IP44), Black Powder Coat.
|
Switched | Outlet Level Monitoring | 60/63A | 200-240V | 17in / 432mm | 10ft / 3m | IEC Splashproof |
|
Y | N | Y | N | |
| VP7U60A3 | JMUU5M6Z1-24CF13-6PS56B4A10-S-A |
Show Description
rPDU, Switched Outlet Level Monitoring, 60/63A, 200-240/346-415V WYE, 43.4kW, Vertical, (24) Combination C13/C19, 10ft / 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Switched | Outlet Level Monitoring | 60/63A | 240/415V WYE | 72in / 1829mm | 10ft / 3m | IEC Splashproof |
|
Y | N | Y | N | |
| VP7U60A2 | JMUU5MIZ1-36CF13-6PS56B4A10-S |
Show Description
rPDU, Switched Outlet Level Monitoring, 60/63A, 200-240/346-415V WYE, 43.4kW, Vertical, (36) Combination C13/C19, 10ft / 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Switched | Outlet Level Monitoring | 60/63A | 240/415V WYE | 66in / 1683mm | 10ft / 3m | IEC Splashproof |
|
Y | N | Y | N | |
| VP7U60A1 | JMUU5MDZ1-48CF13-6PS56B4A10-S |
Show Description
rPDU, Switched Outlet Level Monitoring, 60/63A, 200-240/346-415V WYE, 43.4kW, Vertical, (48) Combination C13/C19, 10ft / 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Switched | Outlet Level Monitoring | 60/63A | 240/415V WYE | 83in / 2115mm | 10ft / 3m | IEC Splashproof |
|
Y | N | Y | N |
