Part # | Model # | Type | Sub Category | Amps | Volts | Rackmount Length | Cord Length | Plug Type | Receptacle (QTY) | Local Meter | Universal | Upgradeable | RCM-B | ||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

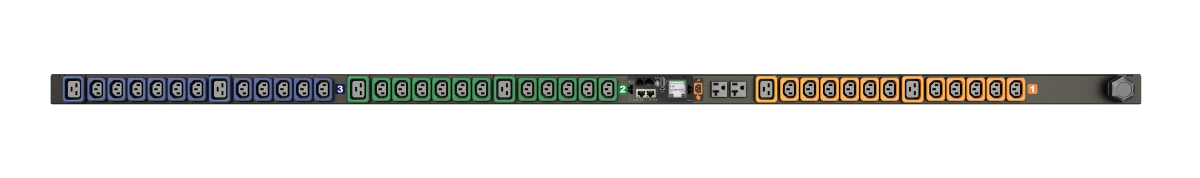

VP4N20A1 | MN05M4W0-41ML59-2TL21A0A10-S |
Show Description
rPDU, Monitored Unit Level EC, 20A, 120/208V WYE, 5.7kW, Vertical, (33) Locking IEC C13, (6) Locking IEC C19, (2) NEMA 5-20R, 10ft power cord with L21-20P, Black Powder Coat.
|
Monitored | Unit Level | 20A | 120/208V WYE | 72in / 1829mm | 10ft | NEMA Twist Lock |
|
Y | N | Y | N | |
VP4N20A0 | MN05M4B0-24D203-2ST5A0A10-S |
Show Description

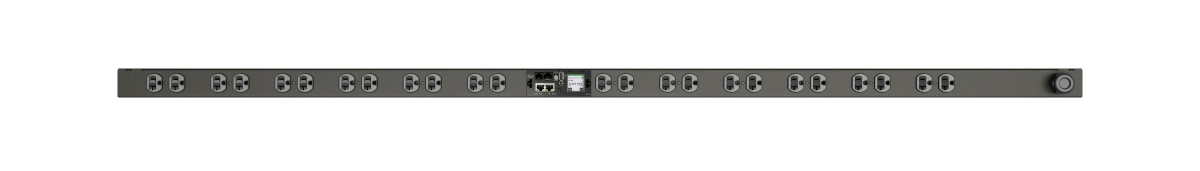

rPDU, Monitored Unit Level EC, 20A, 120V, 1.9kW, Vertical, (24) NEMA 5-20R, 10ft power cord with 5-20P, Black Powder Coat.
|
Monitored | Unit Level | 20A | 120V | 66in / 1683mm | 10ft | NEMA Straight Blade |
|
Y | N | Y | N | |
VP4G9100 | MG03E1R1-12CF13-3PS6B2H10-S |
Show Description

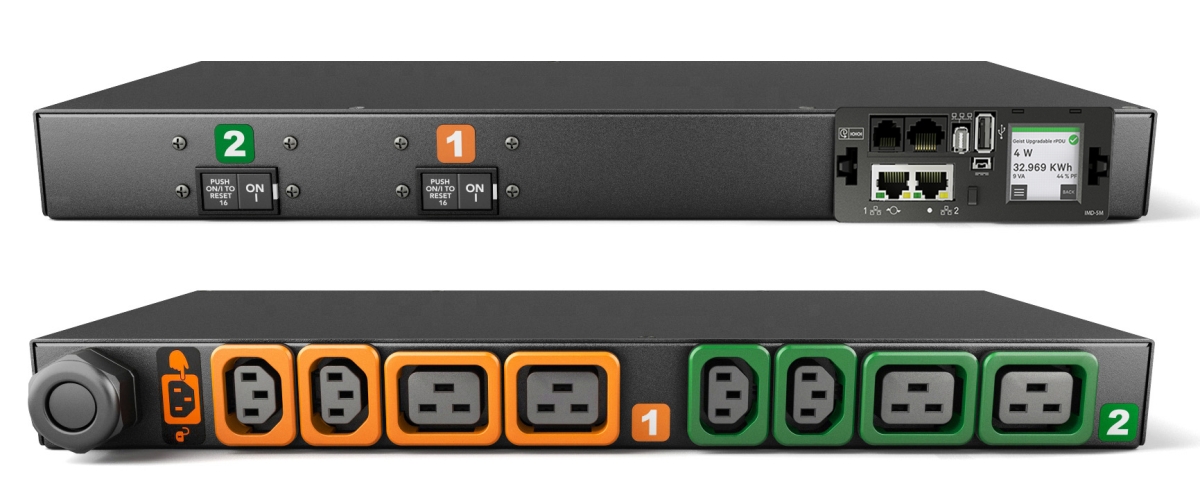

rPDU, Monitored Unit Level EC, 32A, 230V, 7.3kW, Horizontal, (12) Combination C13/C19, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230V | 19in / 483mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
VP4G9001 | MG03E4B1-26PJ63-3PS6B2A10-S-RC |
Show Description
rPDU, Monitored Unit Level EC, Residual Current Metering Type B, 32A, 230V, 7.3kW, Vertical, (20) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230V | 66in / 1683mm | 3m | IEC Splashproof |
|
Y | N | Y | Y | |
VP4G9000 | MG03E4B1-36CF13-3PS6B2A10-S-RC |
Show Description
rPDU, Monitored Unit Level EC, Residual Current Metering Type B, 32A, 230V, 7.3kW, Vertical, (36) Combination C13/C19, 10ft power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230V | 66in / 1683mm | 10ft | IEC Splashproof |
|
Y | N | Y | Y | |
VP4G8003 | MG03E4B0-30PN63-2PS56B2A10-S-A-RC |
Show Description
rPDU, Monitored Unit Level EC, Residual Current Metering Type B, 16A, 230/400V WYE, 11.0kW, Vertical, (24) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 16A | 230/400V WYE | 66in / 1683mm | 3m | IEC Splashproof |
|
Y | N | Y | Y | |
VP4G8001 | MG03E4B0-26PJ63-2PS6B2A10-S-RC |
Show Description
rPDU, Monitored Unit Level EC, Residual Current Metering Type B, 16A, 230V, 3.6kW, Vertical, (20) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 16A | 230V | 66in / 1683mm | 3m | IEC Splashproof |
|
Y | N | Y | Y | |
VP4G8000 | MG03E4B0-36CF13-2PS6B2A10-S-RC |
Show Description
rPDU, Monitored Unit Level EC, Residual Current Metering Type B, 16A, 230V, 3.6kW, Vertical, (36) Combination C13/C19, 10ft power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 16A | 230V | 66in / 1683mm | 10ft | IEC Splashproof |
|
Y | N | Y | Y | |
VP4G30AS | MG05M4W1-42ITB3-3PS56B2A10-S |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230/400V WYE, 22.0kW, Vertical, (30) IEC C13, (12) IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230/400V WYE | 72in / 1829mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
VP4G30AR | MG05M4W1-42IZ63-3PS6B2A10-S |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230V, 7.3kW, Vertical, (36) IEC C13, (6) IEC C19, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230V | 70in / 1778mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
VP4G30AQ | MG05M4W1-30PN63-3PS56B2A10-S-A-RC |
Show Description
rPDU, Monitored Unit Level EC, Residual Current Metering Type B, 32A, 230/400V WYE, 22.0kW, Vertical, (24) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230/400V WYE | 72in / 1829mm | 3m | IEC Splashproof |
|
Y | N | Y | Y | |
VP4G30AP | MG05M4W1-36CF13-3PS56B2A10-S-A-RC |
Show Description
rPDU, Monitored Unit Level EC, Residual Current Metering Type B, 32A, 230/400V WYE, 22.0kW, Vertical, (36) Combination C13/C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230/400V WYE | 70in / 1778mm | 3m | IEC Splashproof |
|
Y | N | Y | Y | |
VP4G30AN | MG05M4B1-26PJ63-3PS6B2A10-S-RC |
Show Description
rPDU, Monitored Unit Level EC, Residual Current Metering Type B, 32A, 230V, 7.3kW, Vertical, (20) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230V | 66in / 1683mm | 3m | IEC Splashproof |
|
Y | N | Y | Y | |
VP4G30AM | MG05M4B1-36CF13-3PS6B2A10-S-RC |
Show Description
rPDU, Monitored Unit Level EC, Residual Current Metering Type B, 32A, 230V, 7.3kW, Vertical, (36) Combination C13/C19, 10ft power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230V | 66in / 1683mm | 10ft | IEC Splashproof |
|
Y | N | Y | Y | |
VP4G30AK | MG05M4B1-36CF13-3PS6B2A10-S |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230V, 7.3kW, Vertical, (36) Combination C13/C19, 10ft power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230V | 66in / 1683mm | 10ft | IEC Splashproof |
|
Y | N | Y | N | |
VP4G30AG | MG05M4W1-32EF43-3PS6B2A10-S |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230V, 7.3kW, Vertical, (24) Locking IEC C13, (6) Locking IEC C19, (2) BS1363, 10ft power cord with 1P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230V | 72in / 1829mm | 10ft | IEC Splashproof |
|
Y | N | Y | N | |
VP4G30AF | MG05M4W1-36CF13-3PS56B2A10-S-A |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230/400V WYE, 22.0kW, Vertical, (36) Combination C13/C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230/400V WYE | 70in / 1778mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
VP4G30AE | MG05M5W1-42PZ63-3PS56B2A10-S-A |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230/400V WYE, 22.0kW, Vertical, (36) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230/400V WYE | 75in / 1905mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
VP4G30AD | MG05M4W1-30PN63-3PS56B2A10-S-A |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230/400V WYE, 22.0kW, Vertical, (24) Locking IEC C13, (6) Locking IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230/400V WYE | 72in / 1829mm | 3m | IEC Splashproof |
|
Y | N | Y | N | |
VP4G30A8 | MG05M4B1-24PBB3-3PS56B2A10-S |
Show Description
rPDU, Monitored Unit Level EC, 32A, 230/400V WYE, 22.0kW, Vertical, (12) Locking IEC C13, (12) Locking IEC C19, 3m power cord with 3P+N+E (IP44), Black Powder Coat.
|
Monitored | Unit Level | 32A | 230/400V WYE | 66in / 1683mm | 3m | IEC Splashproof |
|
Y | N | Y | N |
